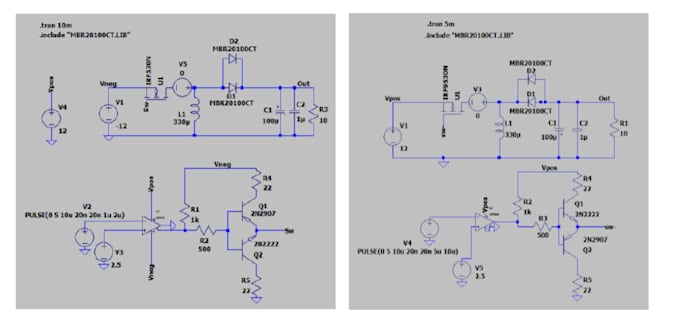

I will design your pcb schematic, layout and simulation

Turn your hardware idea into a manufacturing-ready PCB. As an Electronic Engineer, I specialize in analog, mixed-signal, and power electronics. I create robust, low-noise designs, prioritizing Signal Integrity and Design for Manufacturing (DFM) for seamless assembly at JLCPCB or PCBWay.

My Expertise:

• Schematics & Routing: 2- to 4-layer mixed-signal KiCad layouts.
• Power & Analog: Custom DC-DC converters & analog front-ends with thermal/high-current optimization.
• Simulation: LTspice pre-layout validation (transient, AC, stability).
• BOM Optimization: Cost-effective part selection from LCSC, Mouser, or DigiKey.

Deliverables:

• KiCad source files (.kicad_sch, .kicad_pcb)
• Production Gerber & NC Drill files
• Centroid/CPL files for automated assembly
• Optimized BOM & 3D STEP model

Please contact me before ordering to discuss your constraints.

Requisiti per l'ordine

1. Project Details: Provide a detailed description, block diagrams, or an initial schematic.
2. Mechanical Constraints: Max board dimensions, mounting holes, connector locations (DXF/sketch).
3. Manufacturing: Preferred fab and any mandatory components.
