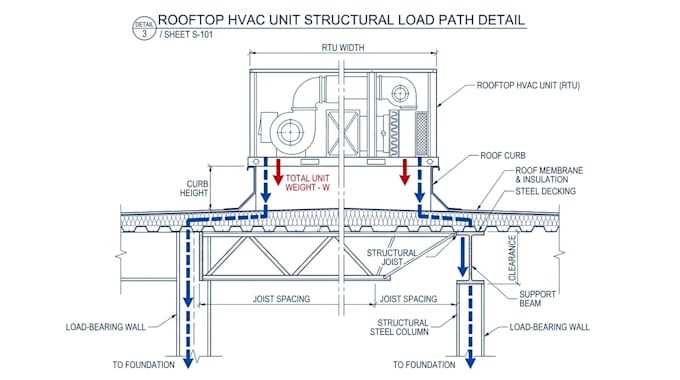

I will calculate structural support for your rooftop hvac unit
High bay racking, mezzanines and industrial facilities
Structural engineer specializing in permit ready structural calculations for high bay racking, warehouse mezzanines, rooftop equipment support, and sign/billboard wind loads. I deliver clear, code com...
About this Gig
I calculate structural support requirements for rooftop-mounted HVAC units, verifying that your roof structure can safely carry the added equipment load, or designing the curb/frame reinforcement needed if it can't. This covers dead load, wind uplift on the unit and curb, and seismic bracing where required by your jurisdiction.
My process: you send the HVAC unit spec sheet (weight, footprint, curb dimensions) plus your roof framing type and location; I calculate the load path from the unit through the roof structure; you receive a calculation package showing whether existing framing is adequate or what reinforcement is needed, suitable for permit or contractor use.
One round of revisions included for permit office or contractor feedback.
Project scale:
Building
Building type:
Residential
•
Commercial
•
Office & workspace
