I will draft patent technical drawings for attorneys including flowcharts and schemas
Jonas F
About this gig
Incomplete or noncompliant drawings can slow prosecution and create unnecessary office actions. For patent attorneys, precise patent technical drawings are essential to support clear claims and smooth USPTO examination.
I draft USPTOstandard patent technical drawings for attorneys, prepared in alignment with 37 CFR 1.84 and MPEP 608.02. Every sheet is structured for technical accuracy, consistent reference numerals, and clean figures.
Services include:
- Utility patent drawings figures

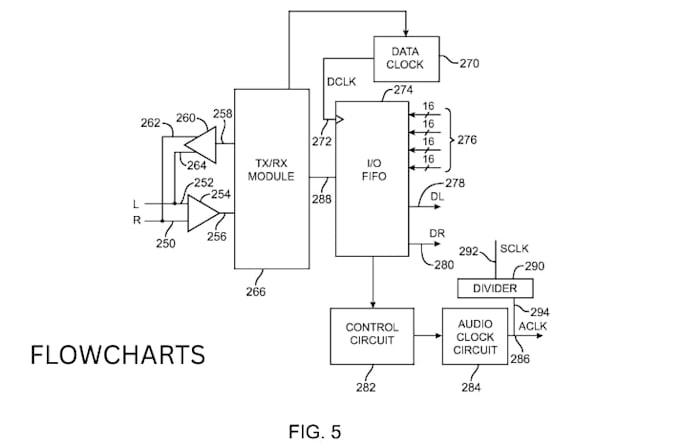

- Flowcharts and schemas for software and method claims

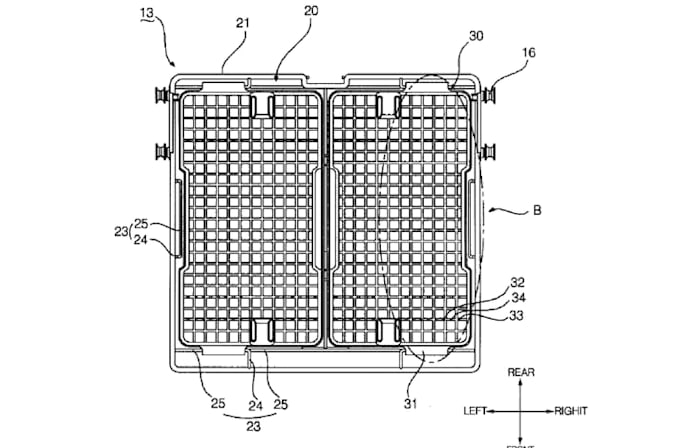

- multiple view (front, back, exploded, sectional, side view,...)
- CAD to patent drawing conversion
- Drawing revisions for continuation or divisional filings
- Formalization of inventor sketches into patent-ready sheets
Technical Specifications:
- top/left 2.5 cm, right 1.5 cm, bottom 1.0 cm per 37 CFR 1.84(g)
- black, dense, uniformly thick under 37 CFR 1.84(l)
- proper FIG. numbering and reference numerals aligning
- A4 or Letter sheets with structured layout
Revision included to ensure compliant, filed-ready drawings that meet attorney timelines.
Send draft figures, CAD files, or claim excerpts to begin.
Delivery style preference
Please inform the freelancer of any preferences or concerns regarding the use of AI tools in the completion and/or delivery of your order.
Get to know Jonas F
Jonas F
USPTO Patent Drawings, Utility and Design Expert
- FromGermany
- Member sinceJul 2026
- Avg. response time1 hour
Languages
English, German, French
Based in Germany, I am a patent illustrator specializing in strictly USPTO, WIPO, and PCT-compliant drawings for utility and design patents. I convert rough sketches and original CAD data into precise, filing-ready patent figures and flowcharts I collaborate closely with independent inventors, engineers, and patent attorneys worldwide. In contrast to general designers, I provide prosecution-aware drafting to prevent USPTO objections. Strict NDAs are always signed.
Kindly send your CAD files or sketches, and I will prepare your patent drawings correctly.
