I will do reverse engineering and 3d modelling from stl
Sathish Kumar
Level 2
4 orders in queue
4.9
4.9
People keep coming back! This seller has many repeat buyers.
Gig Summary
What people loved about this freelancer
jonasbfa
Denmark
Excellent work and a very positive experience from start to finish. The project involved reverse engineering a large and fairly complex 3D scan of a wooden...
benjaminkley
Germany
I had the pleasure of working with Sathish Kumar on a reverse engineering and 3D modeling project, and I am incredibly impressed with his professionalism and...
tremfan
United States
The seller was a pleasure to work with and the quality of their work was outstanding. I was really impressed by their attention to detail. They modeled every...
muricdal
Saudi Arabia
Very cooperative, following up, fast response and delivery Never bothered to make changes every time. Definitely will recommend and will do business with you again for future projects from now on.
tonyattard150
United Kingdom
Exceptional..highly recommend satish! He is always on hand for any help and provides an excellent responsive service. Looking forward to working with him again in the future
About this gig
We assist you in Reverse engineering of various components (like automobile components, plastic materials, casting components, Machined components, sculptures / Idols, etc,) across industries.

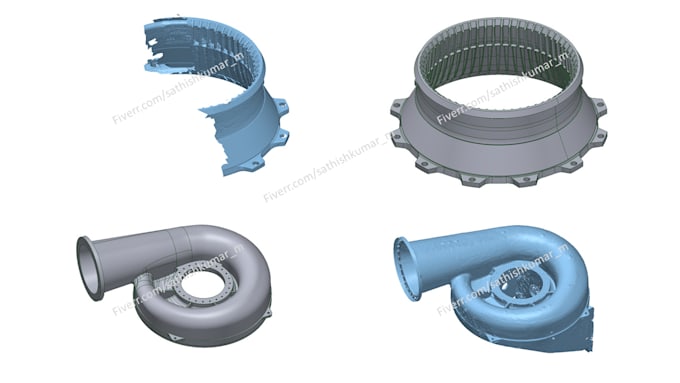

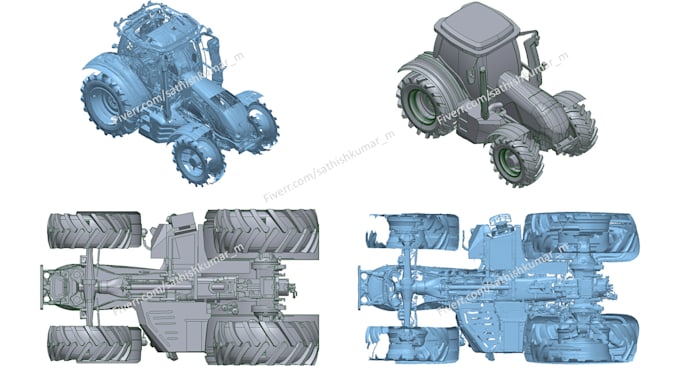

Our services also include, reverse engineering of a complete mechanical system like a complete vehicle or specific unit of the vehicle like Chassis of the vehicle, body of an aircraft, complete CNC machines, etc. The services are customer oriented and the outputs can be customized to your needs and not just sticking to the inputs. The designs can be derived from the 3D scanned data with other physical measurements as optional. The attached thumbnail images give an overview idea about our deliverables.
Along with the reverse engineering (3D Scan data to CAD model conversion), we can also service you by delivering the 2D Drawings for reverse engineered models as required.
The outputs deliverables are STEP, IGES, XT, XB and other CAD models as required.
Delivery style preference
Please inform the freelancer of any preferences or concerns regarding the use of AI tools in the completion and/or delivery of your order.
Get to know Sathish Kumar
Sathish Kumar
Reverse Engineering, BIM Modelling, CAD Modelling
Level 2
- FromIndia
- Member sinceJul 2018
- Avg. response time1 hour
- Last delivery1 day
Languages
English, Tamil
Hands on experience in wide range of Reverse Engineering,BIM Modelling, 3D Scanning, Scan Process, Point Cloud process
Reverse Engineering:
Creation of CAD from 3D scanned references of whole car including (Casting, BIW, Interior Trims, Breaking System, Cooling System, Door Trims, Seats, Battery....,
BIM Modelling:
Hands on experience in Point cloud to BIM modelling of various commercial & Residential buildings and Industries.
3D Printing
We have wide range of 3D Printers and experienced Engineers to do Production. Also we fix data for 3D printing.
Among my clients
Crosslink
Technology Blog/Channel
My Portfolio
Other Industrial & Product Design Services I Offer
FAQ
Do you reverse engineer from photo reference
Yes, we do
Do you reverse engineer from physical dimension
yes, we do
what will be your best tolerance limit
it depends application and input data, Best is 0.05MM
Do you offer Draft Analysis
yes, we do
Do you create core cavity from CAD
yes, we do. It's additional scope of work
Do you support after work completion
yes, we support
