I will design mechanical keyboard and qmk with hotswap sockets
I am doing professional PCB Design Projects since last four years. My field of expertise are PCB Design related projects which include complete schematic and pcb design, Prototype testing, Mechanical ...
Level 1
Has met certain performance criteria and shows strong potential in the marketplace.
Highly Responsive
Known for exceptionally quick replies
About this Gig

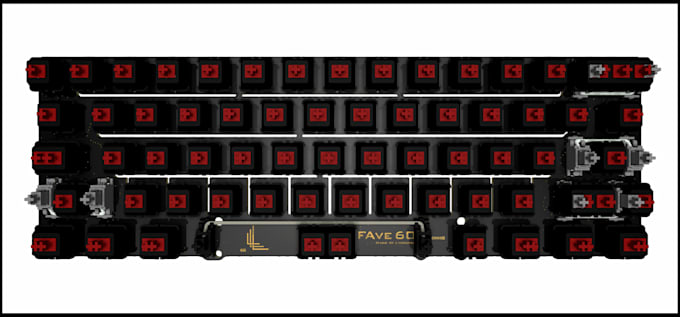

I am offering any type of Mechanical Keyboard PCB Design with Hotswap sockets i.e. Cherry MX, Kailh sockets. I can design any type of Custom Keyboard for e.g. 65%, TKL, RK84, 100%, Split Keyboard, Numpad, Full size Keyboard, 100% RGB Keyboard etc. I mostly use Cherry MX or Kailh Switches. I design Keyboard PCBs according to the DXF file of Keyboard
Deliverables:
Complete Schematic Design
PCB Design File
Production files (Gerber, CPL, BOM)
BOM can be prepared according to the specific supplier or demand from client
Source Files can be Provided on Demand.
MCU Choice:
Client can choose Between ATMEGA32U, STM32, NRF Chip for their Keyboard
Expertise:
Hot Swappable Sockets
OLED
ESD Protection for USB C
USB-C JST for Daughter Board
Cherry MX & Kailh Switches
Bluetooth
Keyboards I offer
40%, 60%, 75%, TKL, RK84, 96%, 100%, Split Keyboards, NumPad, 111 Keys full size Keyboard, Full RGB Keyboard, Bluetooth Keyboard
Its always a pleasure to work with my clients and deliver them according to their requirements. Feel free to message me in inbox to discuss about your project details.
File format:
Gerber
•
STEP
•
SCH
•
Software:
DipTrace
•
Eagle CAD
•
EasyEDA
•
Fusion 360
•
KiCad
•
Proteus
Interface:
HDMI
•
I2S
•
UART
•
USB
•
I2C
•
Wi-Fi
•
BLE
•
BT
•
GSM/GPRS
My Portfolio
Other Electronics Engineering Services I Offer
FAQ
Do you make complete BOM ready to order?
Yes I make comprehensive BOM file with which you can manufacture Keyboard from any PCB Manufacturer
Is Hotswap and RGB Leds is optional?
Yes you can tell me whether you want Normal keys or Hotswap Sockets and for leds you can tell me to use either through hole leds or RGB Leds
What deliverables you can provide?
I can provide complete production files including Gerber file, BOM file, CPL file, 3D step file and Source files etc
